sXGP Service

sXGP

sXGP is a Japanese standard "private LTE" that uses PHS frequency bands (1.9 GHz) and does not require a license.

Uses LTE system : Same mechanism as cellular phones (3GPP/TD-LTE format)Uses LTE system : Same mechanism as cellular phones (3GPP/TD-LTE format)

No license : No license, same as WiFiNo license : No license, same as WiFi

Electromagnetic interference : Less electromagnetic interference than WiFiElectromagnetic interference : Less electromagnetic interference than WiFi

A new private network technology that combines the performance of mobile phones with the convenience of WiFi.

Private networks can be constructed using sXGP (shared Xtended Global Platform).
Furthermore, it is also distinct in its compatibility with local 5G.
sXGP The following is a video envisioned based on this concept.

Use Case

Hospital Use Cases

(1)Increased information with smartphone terminals : More precise initial actions via increased information through smartphones(1)Increased information with smartphone terminals : More precise initial actions via increased information through smartphones

(2)Information sharing through chat : Multiple simultaneous lines of communication. Also used for forwarding medical imaging (2)Information sharing through chat : Multiple simultaneous lines of communication. Also used for forwarding medical imaging

(3)Work simplified for main nurse calls : Simplified work at nurse stations through input of some tasks via smartphone(3)Work simplified for main nurse calls : Simplified work at nurse stations through input of some tasks via smartphone

Effective for patient safety management and staff efficiency

Manufacturing Use Cases

(1)Free layout : Wireless connections make layout changes easy(1)Free layout : Wireless connections make layout changes easy

(2)AGV and other movement data connections : Provides a high-quality network with very few dropped connections(2)AGV and other movement data connections : Provides a high-quality network with very few dropped connections

(3)Can be used to safely handle top-secret information as a closed, private (dedicated) network(3)Can be used to safely handle top-secret information as a closed, private (dedicated) network

Cable-free yet highly secure

Use Cases for BCP Measures

(1)Satellite connection : Internet access available via satellite(1)Satellite connection : Internet access available via satellite

(2)Base to-base transmission : Communication enabled through the deployment of satellites to disaster preparedness centers(2)Base to-base transmission : Communication enabled through the deployment of satellites to disaster preparedness centers

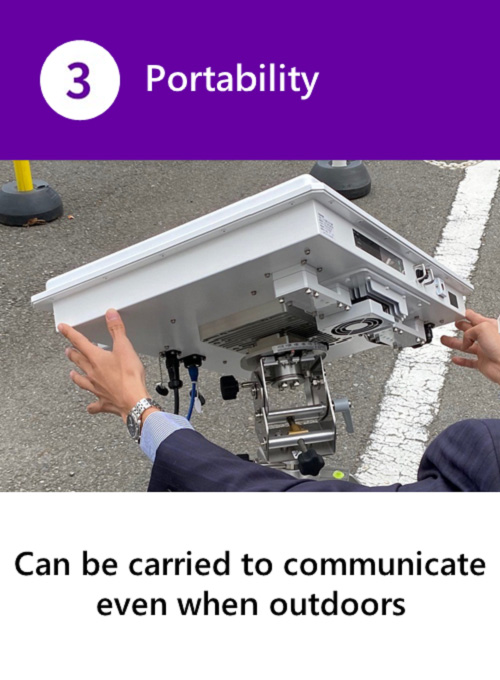

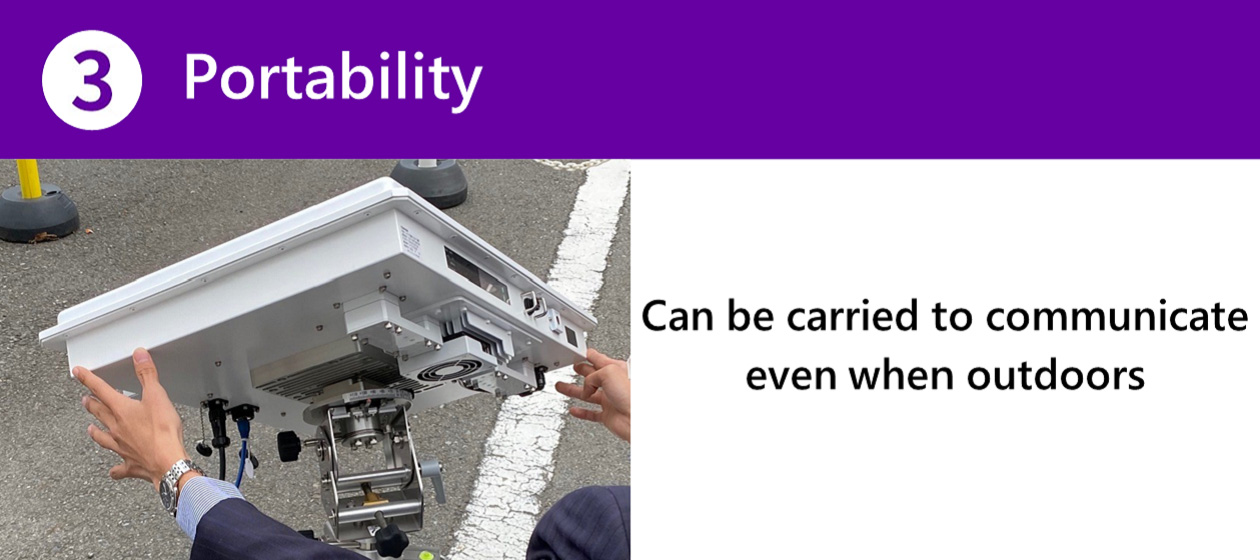

(3)Portability : Can be carried to communicate even when outdoors(3)Portability : Can be carried to communicate even when outdoors

Combining sXGP and satellite communication networks to secure a means of communication during disasters
Note: Separate satellite communications contract required.



Case studies are HERE

Service

In the past, many visitors had to carry two devices, PHS on the premises, and a separate mobile device off the premises
With sXGP, a single smartphone can use sXGP on the premises and its mobile carrier network off the premises
For example, calls from internal extensions on the premises can connect to off-premises mobile carrier networks
Furthermore, it also allows for data connections that support chat and other tools

Seamlessly connect to a private LTE network and various connection provider networks with a single device

Product

sXGP base

sXGP Core

Features

The simple configuration combines the sXGP EPC and IP-PBX function.
Compatible connection with existing PBX, Nurse call with VoLTE instead of VoIP and coexistence with Wi-Fi.

SC-120J/SC-120J2

Accuver

Product Information

Size 186mm×186mm×33.4mm
Weight 580g or under
Output(Total) 100mW
Current Consumption 20mW or under
Accessories Ceiling/wall fittings, cradle
Manufacturer Website http://accuver.jp/products/sxgp-smallcell/

Features

  1. Compatible with frequency expansion(Successfully avoids private PHS interference)
  2. Automatic sync function* and intra-AP sync function (Reduces equipment and construction expenses)
  3. Parameter settings and changes via GUI(Simplified settings and change work)

*Only on SC-120J2

*Please inquire for detailed specifications

We offer portable kits

Features

that provide a usable sXGP environment right out of the box

*This photo is for illustrative purposes only
*Please inquire for details on use and price

Device

AQUOS wish3

Sharp Corporation(SoftBank Corp.)

Product Information

Item Specifications
Size Approx.147mm ×70mm x 8.9mm
Weight Approx.161g
Color Black
Camera main:13MP, sub:5MP
Battery 3,730mAh
SIM eSIM, nanoSIM
Water Resistant / Dust Resistant IPX5, IPX7 / IP6X
Product Webpage https://jp.sharp/products/aquos-wish3/s/

Feature

Rugged, easy-to-use smartphone ideal for business scenes.
eSIM compatible.

AQUOS wish

Sharp Corporation(SoftBank Corp.)

Product Information

Item Specifications
Size Approx.147mm ×71mm x 8.9mm
Weight Approx.162g
Battery 3,730mAh
Compatible Bands sXGP Band: B39
LTE Band: B1/3/8/18/19/41
WCDMA Band: B1/8
5G:n3/n28/n77/n78
SIM eSIM, nanoSIM
Water Resistant / Dust Resistant IPX5・IPX7 / IP6X
Product Webpage https://jp.sharp/products/aquos-wish-biz/s/

Feature

Rugged, easy-to-use smartphone ideal for business scenes.
eSIM compatible.
VoLTE on-premises compatible.

DIGNO
ケータイ 4

KYOCERA
Corporation
(SoftBank Corp.)

Product Information

Item Specifications
Size Approx.51mm ×112mm x 17.9mm
(folded)
Weight Approx. 125g
Color Black/Silver
Battery 1,500mAh (Removable)
Camera Approx.8M
SIM nanoSIM :1
Waterproof/Dustproof IPX5, IPX8 / IP5X
Product webpage https://www.kyocera.co.jp/prdct/telecom/consumer/lineup/digno-keitai4/

Feature

VoLTE on-premises compatible.

DIGNO
ケータイ 4
for Biz

KYOCERA
Corporation
(SoftBank Corp.)

Product Information

Item Specifications
Size Approx.51mm ×112mm x 17.9mm
(folded)
Weight Approx. 125g
Color Black
Battery 1,500mAh (Removable)
Camera -
SIM nanoSIM :1
Waterproof/Dustproof IPX5, IPX8 / IP5X
Product webpage https://www.kyocera.co.jp/prdct/telecom/office/phone/lineup/digno-keitai4_for_biz/

Feature

VoLTE on-premises compatible.

AMT5741

AM Telecom Co., Ltd.

Product Information

Item Specifications
Size 66.0mm x 50.0mm x 13.9mm
Weight 31.7g
Battery 2,780mAh
Compatible bands sXGP Band: B39
LTE Band:B1/8/18/19
Ethernet RJ45 X 2 Ports(IEEE802.3:10/100 Base-T)
Power supply USB I/F(USB Alternate: 5V 1.2A)
Operating temperature -20℃to around +70℃
Product Webpage http://amtel.co.jp/

Feature

Compact IoT GW with easy connection to devices supporting Ethernet.

FutureNet
NXR-G110L-CA

Century Systems
Co., Ltd.

Product Information

Item Specifications
Size 81mm x 137mm x 40.2mm
Weight 480g
Compatible bands sXGP Band: B39
LTE Band: B1/3/8/18/19/21/28
WCDMA Band: B1/6/8/9/19
Ethernet Normal Mode: 10BASE-T/100BASE-TX/1000Base-T
M2M Mode: 10BASE-T/100BASE-TX
Power supply AC Adapter
Operating Temp Normal Mode: -20℃ to 50℃
M2M Mode: -20℃ to 60℃
Product Webpage https://www.centurysys.co.jp/

Feature

Compact, durable router with anti-vibration feature.

EC55

Zebra Technologies Corp.

Product Information

Item Specifications
Size 154.5mm x 76mm x 9.8mm
Weight 183g
Battery 3060mAh (Large Capacity: 4180mAh)
Compatible bands sXGP Band: B39
LTE Band: B1/2/3/4/5/7/8/17/19/20/28/38/40/41
WCDMA Band: B1/2/3/4/5/8/9/19
Water/Dust Resistance IP67
Manufacturer Website https://www.zebra.com/jp/ja/products/mobile-computers/handheld/ec50-ec55.html

Feature

Thin and lightweight enterprise mobile computer.
VoLTE on-premises compatible.

SIM card/Connection service

sXGP SIM card

Features

Uses a secure (authenticated/non-replicable) sXGP SIM card to allow safe and secure connections on-premises.
*Please inquire for details on use and price

sXGP eSIM

Features

The eSIM is an integrated SIM that is embedded in the handset.
With an eSIM-compatible device, no need to replace the SIM card in the device.
All you need to do is sign up and set up your device.

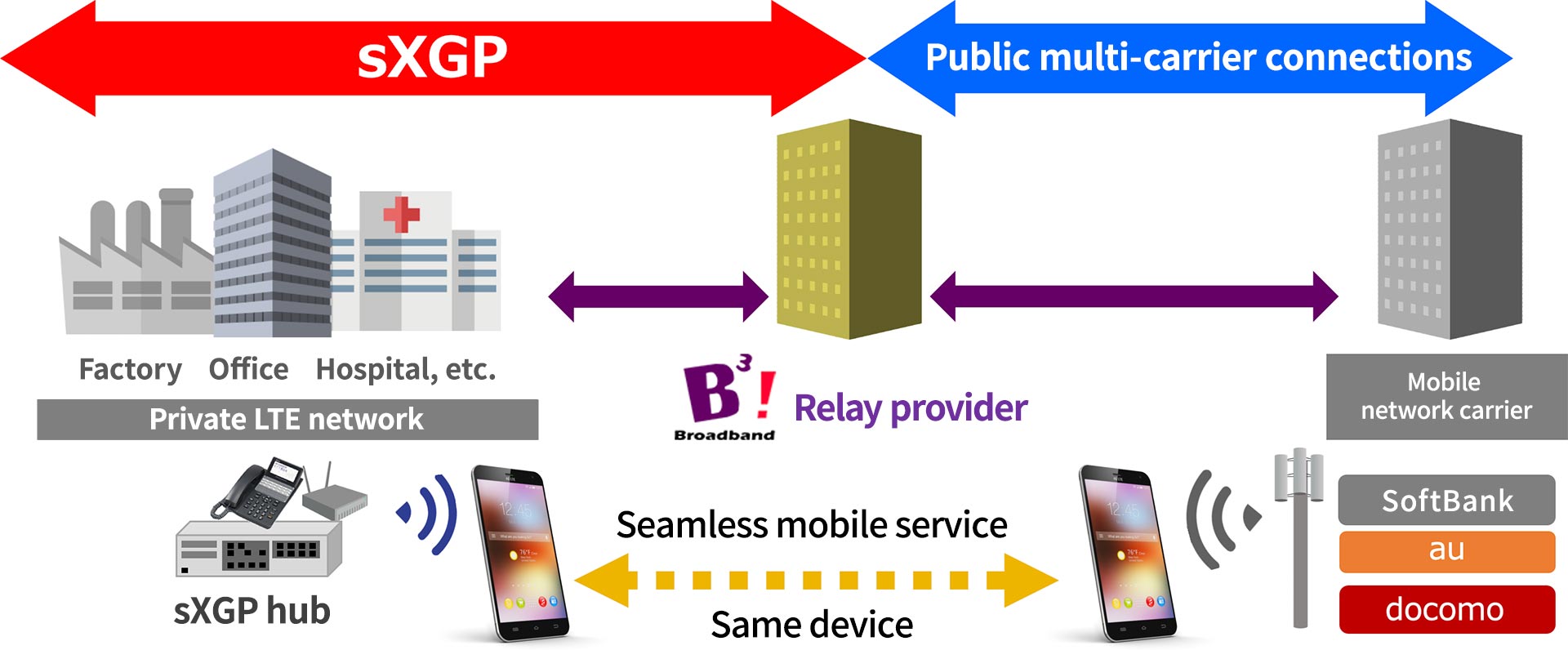

sXGP mobile sXGP-Link

Features

  • On premises -public internal calls supported
  • Internet connection restrictions supported according to internal company policy

*Requires a separate VPN service agreement with us

*Please inquire for details on use and price
